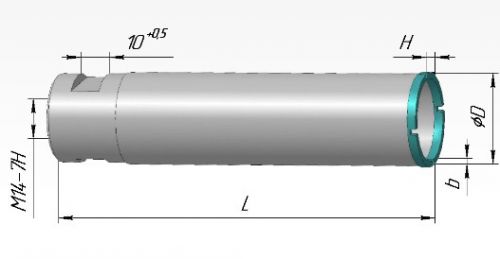

Обозначение

ØD

диаметр

коронки,

мм

Н

высота

коронки,

мм

b

толщина коронки,

мм

Пазы на коронке

количество/ ширина (мм)

L

длина сверла,

мм

МСК14.Г-5

5,0

3,0

1,6

2/1

102,0

МСК14.Г-6

6,0

3,0

2,0

2/1

102,0

МСК14.Г-7

7,0

3,0

2,5

2*

102,0

МСК14.Г-8

8,0

3,0

3,0

2 *

102,0

МСК14.Г-9

9,0

3,0

2,0

2 *

132,0

МСК14.Г-10

10,0

3,0

2,0

2 *

132,0

МСК14.Г-11

11,0

3,0

2,0

2 *

132,0

МСК14.Г-12

12,0

3,0

2,0

2 *

132,0

МСК14.Г-13

13,0

3,0

2,0

2 *

132,0

МСК14.Г-15

15,0

3,0

2,0

2 *

132,0

МСК14.Г-16

16,0

3,0

2,0

2 *

132,0

МСК14.Г-18

18,0

3,0

2,0

2 *

132,0

МСК14.Г-20

20,0

3,0

2,0

2 *

182,0

МСК14.Г-21

21,0

3,0

2,0

2 *

182,0

МСК14.Г-22

22,0

3,0

2,0

2 *

182,0

МСК14.Г-24

24,0

3,0

2,0

3 *

182,0

МСК14.Г-25

25,0

3,0

2,0

3 *

182,0

МСК14.Г-26

26,0

3,0

2,0

3 *

182,0

МСК14.Г-28

28,0

3,0

2,0

4 *

182,0

МСК14.Г-30

30,0

3,0

2,0

4 *

182,0

МСК14.Г-32

32,0

3,0

2,0

4 *

182,0

МСК14.Г-32

32,0

3,0

2,0

4*

132,0

МСК14.Г-35

35,0

3,0

2,0

4 *

182,0

МСК14.Г-36

36,0

3,0

2,0

5 *

182,0

МСК14.Г-40

40,0

3,0

2,0

5 *

182,0

МСК14.Г-42

42,0

3,0

2,0

5 *

182,0

МСК14.Г-45

45,0

3,0

2,0

6 *

182,0

МСК14.Г-50

50,0

3,0

2,0

6 *

182,0

МСК14.Г-55

55,0

3,0

2,0

7 *

182,0

МСК14.Г-60

60,0

3,0

2,0

8 *

182,0

МСК14.Г-65

65,0

3,0

2,0

8 *

182,0

МСК14.Г-65

65,0

3,0

2,0

8 *

132,0

МСК14.Г-70

70,0

3,0

2,0

8*

182,0

*-пазы  трапецеидальной формы
